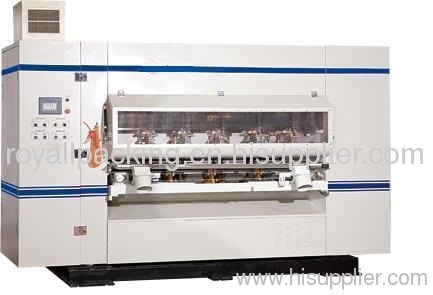

MJBD-3 Automatic Thin-blade NC Slitter Scorer Pre-score type

Price:	100000.0~300000.0 USD
Payment Terms:	T/T,L/C,
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: MJBD-3

Production Capacity: 10

Delivery Date: 20 days

Automatic Grade: Semiautomatic

Usage: Others

Brand Name: Royal packing

Means of Transport: Ocean,Land,Air,

Packing: hard wooden pallet

Processing: Packaging Line

Type: General

Packaging: Metal

This machine is one of the most important part of corrugated paperboard line. It is used for cutting and press line on the paperboard.

(Keywords: Slitter Scorer, NC Slitter Scorer, paperboard slitting scorer, Thin blade, paperboard slitting machine)

MJBD-3 Automatic Thin-blade NC Slitter Scorer (Pre-score type)

Type	Model-Width-Speed-Slitter-Scorer	Dimensions(L X W X H)mm	Weight(ton)	Power(kW)
Pre-score	MJBD-3-1800-150-4-6	2400x3700x2200	6.5	17.0
Pre-score	MJBD-3-1800-150-5-8	2400x3700x2200	6.5	17.0
Pre-score	MJBD-3-2200-150-6-10	2400x4100x2200	8.5	20.0
Pre-score	MJBD-3-1800-200-5-8	2400x3700x2200	6.5	19.0
Pre-score	MJBD-3-2200-200-6-10	2400x4100x2200	8.5	22.0
Pre-score	MJBD-3-2500-200-7-12	2400x4400x2200	10.0	25.0
Pre-score	MJBD-3-1800-250-5-8	2400x3700x2200	6.5	23.0
Pre-score	MJBD-3-2200-250-6-10	2400x4100x2200	8.5	26.0
Pre-score	MJBD-3-2500-250-7-12	2400x4400x2200	10.0	29.0

1. Features

Automatic positioning of slitter sets and scorer sets

Automatic order change, order change time <2s, blade-positioning precision ±0.5 mm. Slitter sets and scorer sets are individually servo controlled. For shifting of slitter or scorer sets we use precision linear guide, pinion and rack. Thus quick act and high precision are realized.

Inverter control system for driving

Slitters and scorers are inverter controlled, timing belt driven, realizes synchronization of slitting and scoring with cardboard transmission.

Pre-score type

Double-row scorer realizes auto switching between concave and flat score - Two rows of scorers, realizes easy switching between concave and flat score modes.

Ensures high scoring quality - Front row pre-score, back row actual score.Protects base liner, gives high scoring quality even for low-quality cardboards.

Automatic adjustment system of gaps between scorers

Gaps between upper and lower scorers are automatically adjusted according to web quality, flute type, number of layers.

Thin-blades

Long-lasting alloyed steel thin-blades.Automatic selection of slitter sets, automatic sharpening, cooling and lubrication of blades.

Automatic edge-waste suction device

Shifting of edge waste suction inlet is AC servo controlled. Left and right waste suction inlets move automatically, symmetrically and synchronously according to position of border blades. For its transmission are linear guide and timing belt adopted.

Touch-screen monitor

Standard 5.7″ touch-screen monitor and friendly HMI on operator console is used for on-site operating.

Superior working conditions

Individual sealed control cabinet; equipped with industrial air-conditioning system; Dust-free, constant temperature and humidity working conditions ensures longer life-span of electrical components.

Stability and reliability

High-quality raw materials, strict heat treatment, high-precision mechanical processing, ensures stable operation of equipment on the long run.

Use of international branded electrical, pneumatic components, standard parts, ensures high reliability and long service life.

High automation

High-automatic running and control, improve the efficiency, save labors,, and reduce labour intensity

CE approval.

Our products are designed and constructed strictly according to CE standards and have obtained CE approval via SGS.

2.Technical specifications
